Question 1

A Cisco engineer is preparing a service profile template for a design, which consists of 20 x UCS B200M6 blade servers 2 x UCS 6454 Fabric Interconnect in End Host Mode, and 3 x UCS 5108 server chassis with 2408 Fabric Extenders The blade servers are equipped with VIC 1480 adapters The engineer does not configure a vNIC/vHBA placement policy in the service profile and the vNICs and vHBAs are assigned to the vCon in a particular order What is the mapping scheme in which Cisco UCS assigns the vCons based on the type of server and the selected virtual slot?

Options :

A : linear ordered

B : network mesh

C : cross match

D : round robin

Answer: D

Question 2

A network engineer is using a Cisco UCS environment connected to a Fibre Channel storage array. The Cisco UCS environment must be connected to an existing SAN network, and several Cisco MDS 9000 Series Switches must be added to increase storage density. The solution must not exhaust the SAN network from the list of available domain IDs after connecting Also, most of the SAN traffic must be mapped from the Cisco UCS blades to a specific group of the fabric interconnect ports Which two features must be deployed to meet these requirements? (Choose two.)

Options :

A : end host mode

B : static PIN grouping

C : priority flow control

D : N-Port lD virtualization

E : dynamic port pinning

Answer: A,C

Question 3

A large financial institution hosts all customer data in a critical data center with a single physical location Top management is concerned about the risk of a single-site failure. Dot budget is also an issue, so the network engineering team is working to implement a cost-effective redundancy strategy with a second data center. The new data center must use a three-tier design Identical to the existing data center. Business requirements dictate that all data must always be accessible from anywhere in the world, even It a single site fails. The team purchased two Cisco Nexus 7700 Series Switches and four Catalyst 8000 Series Routers. Which action must the team take to accomplish the goal?

Options :

A :

Implement NVGRE on the Catalyst 8000 routers to create a DCI communication channel between the data centers and provide Layer 2 extension capabilities.

B :

Implement OTV with the Nexus 7700 Series devices to extend Layer 2 connectivity between the two data centers and provide disaster-recovery capabilities.

C :

Implement FabricPath on the Catalyst 8000 routers in both data centers to provide full redundancy in the event of a disaster. D. Implement HSRP with the Nexus 7700 Series devices to provide gateway redundancy to ensure seamless failover between the Nexus switches.

Answer: B

Question 4

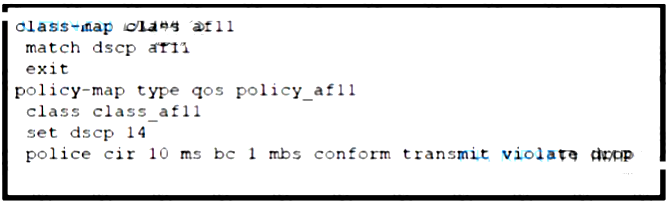

Refer to the exhibit.

An engineer is configuring a QoS policy with these requirements

Match-all AF11 traffic and set it to a DSCP value of 14.

The committed rate must be 10 Mbps with a committed burst rate of 1000 ms

Drop any AF11 traffic that violates these settings.

Any traffic other than af11 must have a DSCP value of 0

The given class-map configuration already exists. Which solution must the engineer use to meet the requirements?

Options :

A :

B :

C :

D :

Answer: C

Question 5

A company Is using Cisco UCS and wants a network orchestration solution to meet these requirements :

centrally manage compute and storage platforms

reduce the time it takes to detect an outage

easily exchange data with TAC to reduce resolution times

The company does not have in-house knowledge about scripting. Which solution must the company choose?

Options :

A : Cisco Intersight

B : Cisco UCS Central

C : Cisco HyperFlex

D : Cisco DCNM

Answer: A
