Question 1

Refer to the exhibit. The EPG-100 must be extended to the vCenter as a port group with a tagged VLAN ID of 100. Which set of actions accomplishes this goal?

Options :

A :

1. Define a static VLAN range (from 100-200) under a VLAN pool that is associated with the dc1vcdev domain.

2. Associate the dc1vcdev domain with EPG and select these settings:

• Untagged VLAN Access: unselected

• VLAN Mode: Static with Encap: 100

B :

1. Define a static VLAN range (from 100-200) under a VLAN pool that is associated with the dc1vcdev domain.

2. Associate the dc2vcdev domain with EPG and select these settings:

• Untagged VLAN Access: selected

• VLAN Mode: Static with Encap: 100

C :

1. Define a dynamic VLAN range (from 100-200) under a VLAN pool that is associated with the delvdev domain.

2. Associate the dc1vcdev domain with EPG and select these settings:

• Untagged VLAN Access: unselected

• VLAN Mode: Static with Encap: 100

D :

1. Define a dynamic VLAN range (from 100-200) under a VLAN pool that is associated with the dc1vdev domain.

2. Associate the dc2vcdev domain with EPG and select these settings:

• Untagged VLAN Access: selected

• VLAN Mode: Static with Encap: 100

Answer: A

Question 2

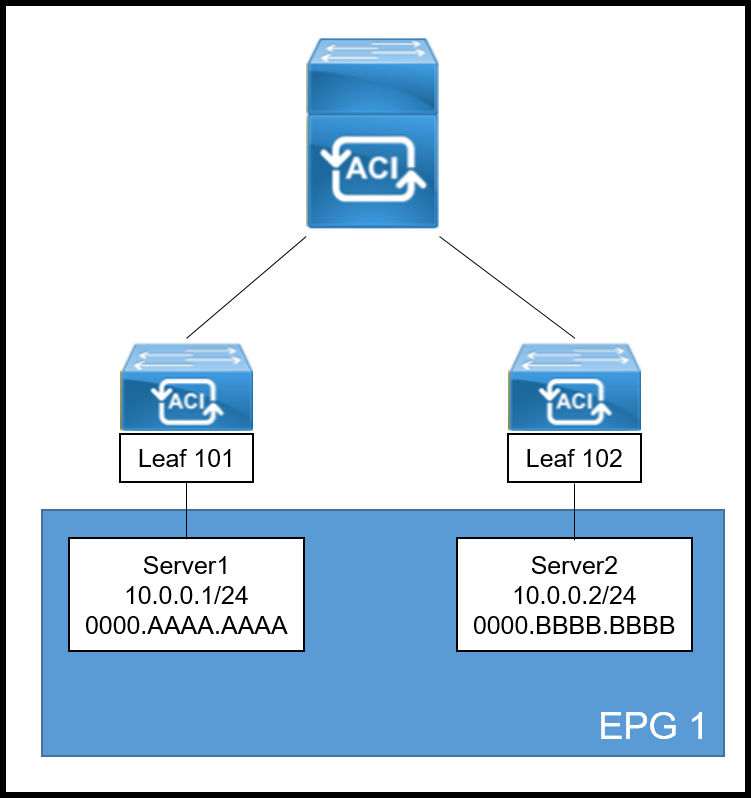

Refer to the exhibit. An engineer wants to initiate an ICMP ping from Server1 to Server2. The requirement is for the BD1 to enforce ICMP replies that follow the expected path. The packets must be prevented from taking the direct path from Leaf1 to Server1. Which action must be taken on BD1 to meet these requirements?

Options :

A : Set L2 Unknown Unicast to Flood.

B : Set L2 Unknown Unicast to Hardware Proxy.

C : Disable Unicast Routing

D : Enable ARP Flooding.

Answer: C

Question 3

An engineer created two interface protocol policies called Pol_CDP40275332 and Pol_LLDP46783451. The policies must be used together in a single policy. Which ACI object must be used?

Options :

A : interface policy group

B : switch policy group

C : switch profile

D : interface profile

Answer: A

Question 4

Refer to the exhibit. An engineer is integrating a VMware vCenter with Cisco ACI VMM domain configuration. ACI creates port-group names with the format of

"Tenant | Application | EPG". Which configuration option is used to generate port groups with names formatted as "Tenant=Application=EPG"?

Options :

A : enable tag collection

B : security domains

C : delimiter

D : virtual switch name

Answer: C

Question 5

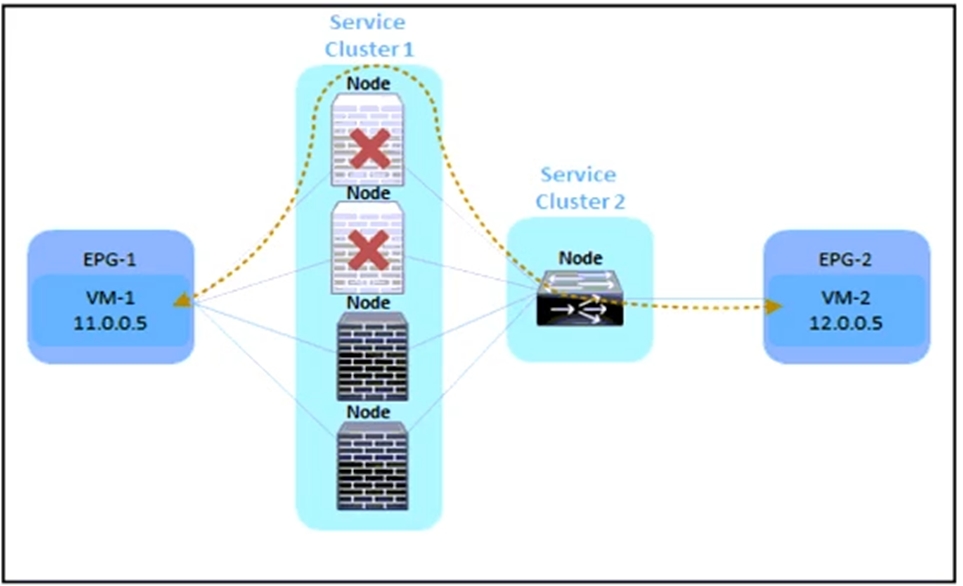

Refer to the exhibit. An engineer must divert the traffic between VM-1 and VM-2 by using a Multi-Node service graph. The solution should prevent an insufficient number of available Layer 4 to Layer 7 devices in the first cluster. Which configuration set accomplishes this goal?

Options :

A :

• PBR node tracking

• tracking threshold with action bypass

• symmetric PBR

• resilient hashing

B :

• PBR node tracking

• tracking threshold with action permit

• unidirectional PBR

• resilient hashing

C :

• PBR node tracking

• tracking threshold with action permit

• symmetric PBR

• resilient hashing

D :

• PBR node tracking

• tracking threshold with action deny

• symmetric PBR

• unidirectional PBR

Answer: A
